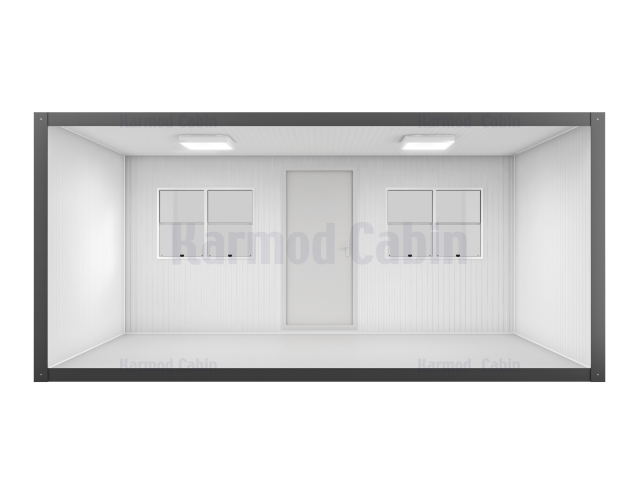

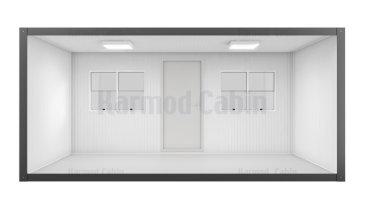

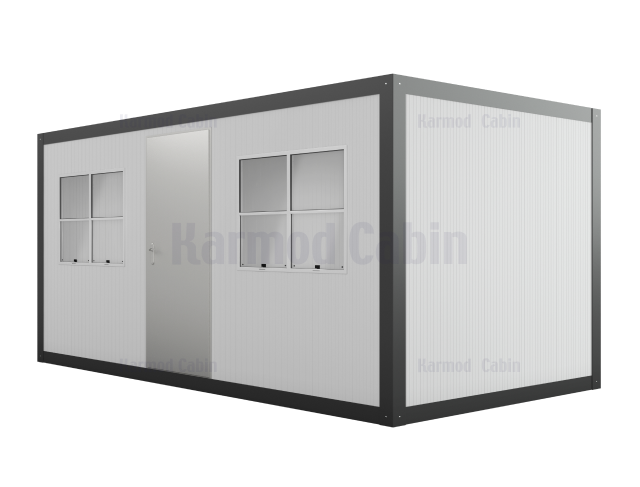

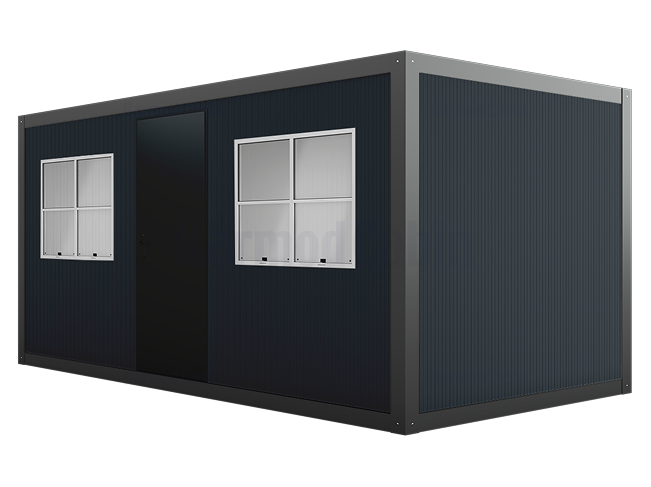

Economic Container 240x500

Get offer

Add to cart

Depth 200 cm
Width 500 cm

Technical Information Other Dimensions

KARMOD ECO CONTAINER TECHNICAL SPECIFICATIONS
TECHNICAL DATA
Earthquake Conditions	1st degree
Metal Materials	ST 37 GALVANIZED METAL PROFILE
Climate Conditions	Turkiye Climate Regions
Snow Load	80 Kg/m²
Insulation	TS 365 NEW GENERATION FLAMMABLE B1 CLASS Polystyrene Foam (EPS)
Wind speed	80 Km/Hour (Fixing to the ground is the responsibility of the customer
Chassis Load Capacity	200 Kg/m²
FLOOR
System	The floor of the cabin is made of specially shaped steel construction and 2040-3050 one-piece box profiles. The ground to be placed must be level.
Floor covering	Fibercement, cemented particle board or equivalent board plate is used as the floor covering of the cabin.
EXTERIOR PANEL
Exterior Panel Cladding	External surface coatings RAL 9002 ELECTROSTATIC PAINTED SHEET.
Inner Panel	Internal surface coatings RAL 9002 ELECTROSTATIC PAINTED SHEET.
Panel Insulation	Polystyrene Foam (EPS) with 30 mm thickness and 16 kg/m³ density is used. The fire class is B1. It does not smell and mold. It provides heat and sound insulation.
ROOF
Roof System	It is manufactured from ABS material with a single wall of 4 mm thickness. The specially prepared 1.5 mm steel profile, reinforced with galvanized chassis carcass, is mounted to the cabin construction with screw connection.
Roof Insulation	In the roof construction, insulation with 40 mm thick and 16 kg/m³ density Polystyrene Foam (EPS) and perfect impermeability are provided with a special form GRP roof.
Inner Surface Coating	PVC Paneling is used as ceiling covering.
Exterior Surface Coating	It is a 0.40 mm electrostatic powder coated galvanized sheet material resistant to the external atmosphere and the ultraviolet rays of the sun. It has anticorrosive, washable, rustproof and rotproof properties. Body painting in different colors is not allowed.
DOORS
Exterior Door	It is a white colored special hinged PVC door. TSE certified locks and special door handles are used. The outer door size is 71.5 x 184.5 and the upper part is 4 mm thick door glass, the outer surface of the under-door mirror is 0.40 mm Ral 9002 painted micro-rolled galvanized sheet and the inner surface is paneled.
WINDOWS
Window	It consists of electrostatic powder coated white aluminium profile frames.
Glass	The windows of the cabin are made of 4 mm thick tempered glass (auto glass). It is produced in a way that does not harm people when the glass is broken.
PAINTS
Metal Parts	2 mm thick steel profile galvanized chassis is used. The construction is not painted.
	Galvanized material outer cover parts are produced in electrostatic painted standard colors upon request.
ELECTRICAL INSTALLATION
Cable	3 x 2.5 TSE certified NYM brand cable was laid on the surface using the electrical wiring duct.
Fuses	16 A TSE certified fuse automat is used.
Lighting Fixture	TSE certified donut or globe lighting fixtures are used.
Sockets and Switches	2000 W 220 Volt resistant TSE certified materials are used in electrical switches and grounded sockets.
SANITARY INSTALLATION (Surface mounted)
Sanitary ware	TSE certified materials are used.
Clean Water Installation	TSE certified PPRC materials are used.
Waste Water Installation	TSE certified PVC material is used.
EXTERNAL CONNECTIONS
It is the customer's responsibility to pour concrete 20 cm more than the cabin dimensions, install the cabin on the ground, and make electricity, clean water and waste water connections.
OPTIONAL ACCESSORIES
Optionally, special requests such as window eaves, counters, tables, shelves, sinks, blinds, interior wall partitions and additional WC are made for a fee.
LIFTING SYSTEM and SHIPMENT
Depending on the conditions of the area to be shipped, it is possible to load with a crane thanks to the eyebolt rings in the inner corners. However, for this, equal steel rope and a minimum of 2 m. Pay attention to the boom distance. In cases where it is not possible to load with a crane, there are feet that allow transportation from the bottom with forklift or pallet truck. The vehicle should approach as far as the cabin will be lowered.
Karmod Cabin Technologies reserves the right to make changes to technical specifications.

Economic Container 240x400

Depth 200 cm
Width 400 cm

Detail Add to Cart

Economic Container 240x600

Depth 200 cm
Width 600 cm

Detail Add to Cart

Technical Specifications

Building Depth 200 cm
Wall Insulation wall of 4 mm thickness
External Door door size is 71.5 x 184.5 and the upper part is 4 mm thick door glass
Waste Water Installation TSE certified PVC material is used.
Window It consists of electrostatic powder coated white aluminium profile frames.

Metal Materials ST 37 Galvanized metal profile
Cable 3 x 2.5 TSE certified NYM brand cable was laid on the surface using the electrical wiring duct.
System The floor of the cabin is made of specially
Roof System The specially prepared 1.5 mm steel profile
Glass The windows of the cabin are made of 4 mm thick tempered glass

Frequently Asked Questions

How long does it usually take to get an economic container delivered?

Delivery times depend a bit on what you need. If you’re going for a standard model, it usually takes anywhere from a few days up to two weeks. Custom orders might take a little longer, but we’ll keep you posted every step of the way, so you know exactly what’s going on.

Is it possible to change the exterior design of an economic container?

Yes, for sure! We can tweak the exterior to fit what you’re looking for. Want a specific color, your company logo, more windows, or different doors? You got this! Just tell us what you need, and we’ll make it happen.

Are economic containers easy to move to another location?

Yep, they’re moved easily. Thanks to their sturdy yet modular build, it’s not a hassle to relocate them. And if you need help with the move, just reach out. We can assist with transporting and setting it back up.

Can I use an economic container year-round?

Yes, absolutely. Our containers are built for all kinds of weather. They’re well-insulated, so they keep things cool in the summer and warm in the winter. No matter the season, you’ll have a comfortable indoor space.

What’s the shipment process like for an economic container?

Once you order, our logistics team handles everything. We’ll make sure your container is safely delivered to you using specialized trucks. When it arrives, we can help with unloading, and if you want, we’ll take care of the setup too, making sure it’s ready to go.

How well do the containers stand up to strong winds?

Our containers are made from tough, durable materials, so they can handle harsh weather, including strong winds. When they’re properly anchored, you can trust them to stay steady even in rough conditions.

Are there standard sizes for the containers? Can I order a custom size?

If you have a specific size in mind, just let us know. We can create a custom container to fit what you want.

How big are the economic containers in terms of square meters?

Our standard containers come in sizes like 10 m² and 15 m². They offer flexible space for different uses, but if you need something different, we’re happy to customize it.

Do you offer installation services?

Yes, we do. Our team can handle the installation for you, so everything is set up and ready to use. Just let us know what you need, and we’ll take care of it!
