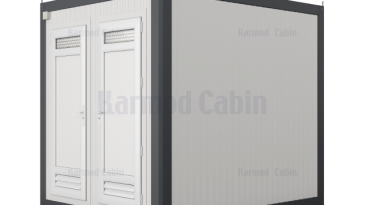

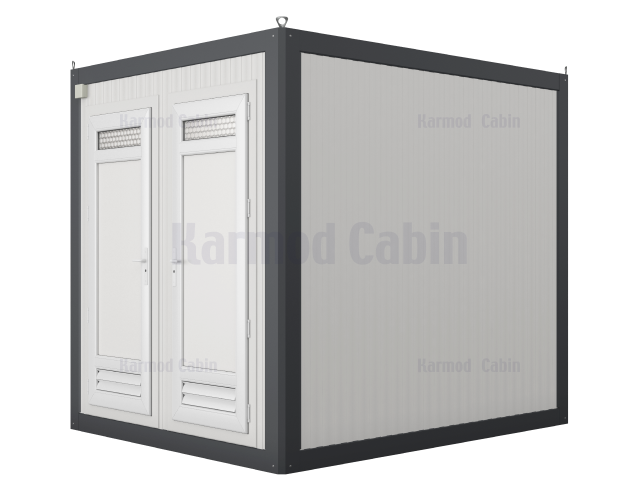

Mobile WC Panel Cabin 210x260

Name: Mobile WC Panel Cabin 210x260
Brand: Karmod
Availability: InStock

Mobile WC Panel Cabin 210x260 offers a spacious interior and portability, ideal for outdoor events, construction sites, and campsites. Made of durable materials, it withstands outdoor conditions. With easy assembly, it is quickly ready for use. It features thermal and sound insulation, along with integrated water and electrical systems for comfort. Its modern design fits well in any environment.

Technical Table

For Your Project Works

project@karmodcabin.com Mon - Fri 08:00 - 18:00
Sat 08:00 - 16:00

Get offer

Depth 210 cm
Width 260 cm
Height 230 cm

Technical Info
Other Dimensions
F.A.Q.

Technical Specifications

Building Height 230/245 cm
Wall Insulation Made of 50 mm thick, 40 kg/m³ Rock Wool with fire class A
External Door PVC frame door is used
Roof Heat Transmission Coefficient 0.26 W/m²K

Metal Materials ST 37 Galvanized metal profile
Cable For sockets, 3x2.5 mm; for lighting, 2x1.5 mm NYM TSE certified cables are used.
System The floor is applied over single-piece steel construction box profiles.
Roof System 40 mm thick glass wool (14 kg/m³), 0.50 mm thick 27 mm * 200 mm deep

Other
Dimensions

Mobile WC Panel Cabin 135x135

Depth 135 cm
Width 135 cm
Height 230 cm

Get offer

Detail

Mobile WC Panel Cabin 135x210

Depth 135 cm
Width 210 cm
Height 230 cm

Get offer

Detail

Mobile WC Panel Cabin 135x260

Depth 135 cm
Width 260 cm
Height 230 cm

Get offer

Detail

Mobile WC Panel Cabin 135x315

Depth 135 cm
Width 315 cm
Height 230 cm

Get offer

Detail

Mobile WC Panel Cabin 210x210

Depth 210 cm
Width 210 cm
Height 230 cm

Get offer

Detail

Mobile WC Panel Cabin 260x260

Depth 260 cm
Width 260 cm
Height 230 cm

Get offer

Detail

Portable Wc Shower Cabin 150x150

Width 150 cm
Depth 150 cm
Weight 350 kg
Height 245 cm

Get offer

Detail

Portable Wc Shower Cabin 150x270

Width 150 cm
Depth 270 cm
Weight 500 kg
Height 245 cm

Get offer

Detail

Portable Wc Shower Cabin 150x390

Width 150 cm
Depth 390 cm
Weight 600 kg
Height 245 cm

Get offer

Detail

Portable Toilet and Shower 270x270

Width 270 cm
Depth 270 cm
Weight 800 kg
Height 245 cm

Get offer

Detail

Disabled Wc Cabin 215x215

Width 215 cm
Depth 215 cm
Weight 540 kg

Get offer

Detail

Frequently Asked Questions

What is the average delivery time for a WC-shower cabin?

Often, it is 4 to 8 weeks to deliver WC-shower cabins. We work hard to make sure you get your cabin quickly while keeping our quality high. If you need a different design, it might take a bit longer to make sure every detail is right.

Can the exterior design of a WC-shower cabin be modified?

Yes, yes, yes! We know looks and functionality matter, so we offer lots of options to change the outside design. You can choose different colors, materials, or other features to make the cabin fit your space perfectly or blend into its surroundings.

Can we easily relocate WC-shower cabins to a different location?

Yes, our WC-shower cabins are created to be moved easily. Thanks to their modular design, you can relocate them without much hassle.

Can I use WC-shower cabins in all seasons?

Yes, you can use our WC-shower cabins all year round. They’re built to handle all kinds of weather. With insulation included, they keep the inside comfortable, whether it’s hot in the summer or cold in the winter.

How is the shipment process of a WC-shower cabin carried out?

We take special care in delivering your WC-shower cabin. Each one is securely transported using special vehicles and arrives either fully or partially assembled, based on your needs. Our team will handle everything, including unloading and setting it up at your site.

How is the wind resistance of the cabins?

Our WC-shower cabins are strong for handling tough winds. With reinforced construction, they stay stable even in bad weather, giving you peace of mind wherever they’re used.

What is the size of the WC-shower cabin in square meters?

We have different sizes available to match what you need. Standard WC-shower cabins can range from small, around 3 square meters, to larger ones over 10 square meters. Get contact us for detailed information.

Can you provide installation service?

Yes, we can provide the installation of your WC-shower cabin. Our team takes care of everything, from getting the site ready to connecting utilities, no worries!

KARMOD WC PANEL CABIN TECHNICAL SPECIFICATIONS (ANNEX-A)
TECHNICAL DATA
Earthquake Conditions	1st degree
Metal Materials	ST 37 GALVANIZED METAL PROFILE
Climate Conditions	Turkiye Climate Regions
Snow Load	80 Kg/m²
Insulation	TS 365 NEW GENERATION FLAMMABLE B1 CLASS Polystyrene Foam (EPS)
Wind speed	80 Km/Hour (Fixing to the ground is the responsibility of the customer
Chassis Load Capacity	200 Kg/m²
FLOOR
System	The floor of the cabin is made of specially shaped steel construction and 2040-3050 one-piece box profiles. The ground to be placed must be level.
Floor covering	Fibercement, cemented particle board or equivalent board plate is used as the floor covering of the cabin.
EXTERIOR PANEL
Exterior Panel Cladding	External surface coatings RAL 9002 ELECTROSTATIC PAINTED SHEET.
Inner Panel	Internal surface coatings RAL 9002 ELECTROSTATIC PAINTED SHEET.
Panel Insulation	Polystyrene Foam (EPS) with 30 mm thickness and 16 kg/m³ density is used. The fire class is B1. It does not smell and mold. It provides heat and sound insulation.
ROOF
Roof System	It is manufactured from ABS material with a single wall of 4 mm thickness. The specially prepared 1.5 mm steel profile, reinforced with galvanized chassis carcass, is mounted to the cabin construction with screw connection.
Roof Insulation	In the roof construction, insulation with 40 mm thick and 16 kg/m³ density Polystyrene Foam (EPS) and perfect impermeability are provided with a special form GRP roof.
Inner Surface Coating	PVC Paneling is used as ceiling covering.
Exterior Surface Coating	It is a 0.40 mm electrostatic powder coated galvanized sheet material resistant to the external atmosphere and the ultraviolet rays of the sun. It has anticorrosive, washable, rustproof and rotproof properties. Body painting in different colors is not allowed.
DOORS

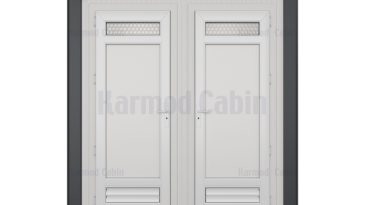

Exterior Door	It is a white colored special hinged PVC door. TSE certified locks and special door handles are used. The outer door size is 71.5 x 184.5 and the upper part is 4 mm thick door glass, the outer surface of the under-door mirror is 0.40 mm Ral 9002 painted micro-rolled galvanized sheet and the inner surface is paneled.
WINDOWS
Window	It consists of electrostatic powder coated white aluminium profile frames.
Glass	The windows of the cabin are made of 4 mm thick tempered glass (auto glass). It is produced in a way that does not harm people when the glass is broken.
PAINTS
Metal Parts	2 mm thick steel profile galvanized chassis is used. The construction is not painted.
	Galvanized material outer cover parts are produced in electrostatic painted standard colors upon request.
ELECTRICAL INSTALLATION
Cable	3 x 2.5 TSE certified NYM brand cable was laid on the surface using the electrical wiring duct.
Fuses	16 A TSE certified fuse automat is used.
Lighting Fixture	TSE certified donut or globe lighting fixtures are used.
Sockets and Switches	2000 W 220 Volt resistant TSE certified materials are used in electrical switches and grounded sockets.
SANITARY INSTALLATION (Surface mounted)
Sanitary ware	TSE certified materials are used.
Clean Water Installation	TSE certified PPRC materials are used.
Waste Water Installation	TSE certified PVC material is used.
EXTERNAL CONNECTIONS
It is the customer's responsibility to pour concrete 20 cm more than the cabin dimensions, install the cabin on the ground, and make electricity, clean water and waste water connections.
OPTIONAL ACCESSORIES
Optionally, special requests such as window eaves, counters, tables, shelves, sinks, blinds, interior wall partitions and additional WC are made for a fee.
LIFTING SYSTEM and SHIPMENT
Depending on the conditions of the area to be shipped, it is possible to load with a crane thanks to the eyebolt rings in the inner corners. However, for this, equal steel rope and a minimum of 2 m. Pay attention to the boom distance. In cases where it is not possible to load with a crane, there are feet that allow transportation from the bottom with forklift or pallet truck. The vehicle should approach as far as the cabin will be lowered.
Karmod Cabin Technologies reserves the right to make changes to technical specifications.
