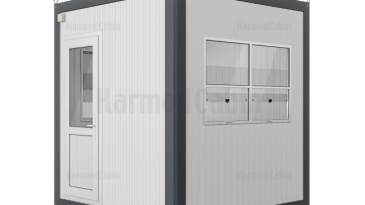

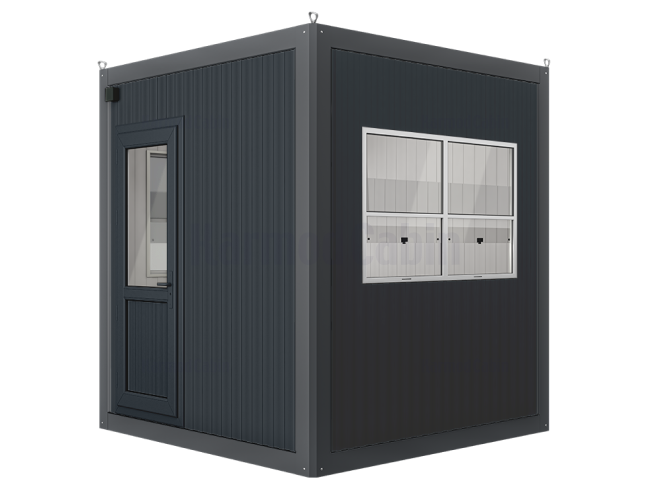

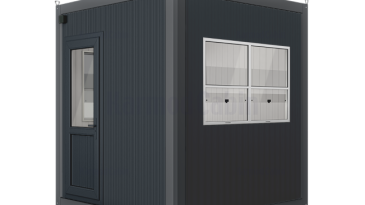

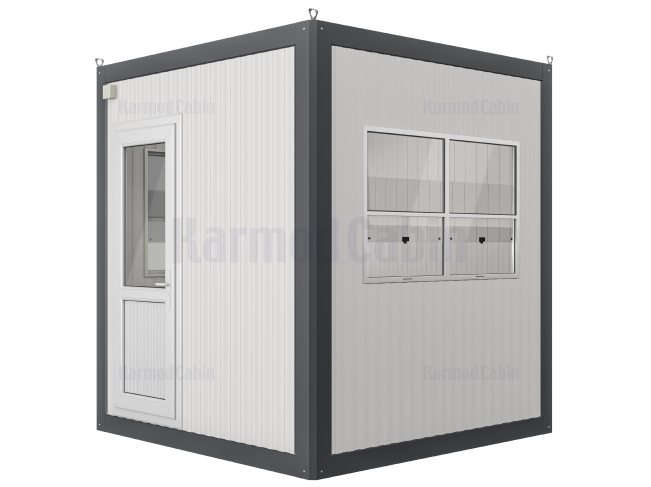

Sandwich Panel Cabin 210x210

Name: Sandwich Panel Cabin 210x210
Brand: Karmod
Availability: InStock

Sandwich Panel Cabin 210x210 offers a spacious interior and durable structure, ideal for various purposes like offices, security posts, or temporary workspaces. Easy assembly and portability ensure quick setup. Thermal and sound insulation provide comfort, while low maintenance and energy efficiency offer economic benefits.

Technical Table

For Your Project Works

project@karmodcabin.com Mon - Fri 08:00 - 18:00
Sat 08:00 - 16:00

Get offer

Height 230 cm
Width 210 cm
Depth 210 cm

Technical Info
General Info
Other Dimensions
F.A.Q.

Technical Specifications

Building Height 110/135/210 cm
Wall Insulation wall of 4 mm thickness.
Exterior Door The outer door size is 71.5 x 184.5 and the upper part is 4 mm thick door glass,
Roof System The specially prepared 1.5 mm steel profile
Window It consists of electrostatic powder coated white aluminium profile frames.

Metal Materials ST 37 Galvanized metal profile
Cable 3 x 2.5 TSE certified NYM brand cable was laid on the surface using the electrical wiring duct.
Fuses 16 A TSE certified fuse automat is used.
Roof Insulation insulation with 40 mm thick and 16 kg/m³ density Polystyrene Foam
Glass The windows of the cabin are made of 4 mm thick tempered glass (auto glass)

General Features

Highest Insulation

The trapezoidal roof system is applied on a steel construction for durability. Insulation is provided by 40 mm thick glass wool and polyurethane-filled sandwich panels. The polyurethane filling is supported by a sealing gasket to enhance insulation. PVC paneling is used on the ceiling for both aesthetics and functionality.

Wall System

The walls are constructed using specially shaped EPS-filled sandwich panels mounted onto corner posts. Both the interior and exterior surfaces feature RAL 9002 electrostatically painted steel sheets. The 40 mm thick EPS insulation is compliant with E-class fire standards, providing safe and efficient thermal insulation.

Tempered Glass

0.5 mm Thick Galvanized Corrugated Sheet, resistant to rain and fire-resistant chemical material,

R11 flooring for wet areas
Light gray flooring for office-type products
Dust-resistant anthracite carpet

Door

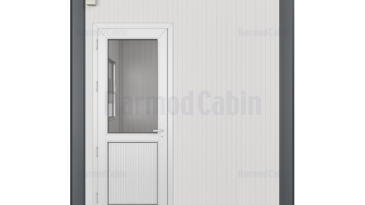

The doors are made of white PVC with special hinges. TSE-certified locks and custom door handles are used. The exterior door dimensions are 71.5 x 184.5 cm, featuring 4 mm thick glass in the upper section.

Other
Dimensions

Sandwich Panel Cabin 110x110

Height 230 cm
Width 110 cm
Depth 110 cm

Get offer

Detail

Sandwich Panel Cabin 135x135

Height 230 cm
Width 135 cm
Depth 135 cm

Get offer

Detail

Sandwich Panel Cabin 135x210

Height 230 cm
Weight 210 cm
Depth 135 cm

Get offer

Detail

Sandwich Panel Cabin 135x260

Height 230 cm
Width 260 cm
Depth 135 cm

Get offer

Detail

Sandwich Panel Cabin 210x260

Height 230 cm
Width 260 cm
Depth 210 cm

Get offer

Detail

Frequently Asked Questions

What is the average delivery time for a panel cabin?

It takes around 4 to 6 weeks to get a panel cabin delivered. If you’ve added any custom design elements or special features, it might stretch the timeline a bit to make sure everything’s done right.

Can the exterior design of a panel cabin be modified?

Absolutely! Panel cabins are pretty flexible when it comes to exterior design. You can pick custom finishes, colors, and even add architectural details to match your style or branding.

Can we easily relocate panel cabins to a different location?

For sure! Panel cabins are made to be portable. Depending on their size and structure, they can either be taken apart and put back together or moved as a single unit.

Can I use panel cabins in all seasons?

Yep, they’re made to handle all types of weather. Panel cabins are well-insulated and built with weather-resistant materials, so they’ll keep you comfortable whether it’s hot in the summer or chilly in the winter.

How is the shipment process of a panel cabin carried out?

Shipping depends on the cabin’s size and how it’s put together. Smaller cabins often come fully assembled, while larger ones are shipped as modular panels that are assembled on-site.

How is the wind resistance of the cabins?

These cabins are made tough; they’re designed to withstand high winds and harsh weather conditions.

Are cabin dimensions standard? Can custom sizes be produced?

We offer standard dimensions that cover most needs, but custom sizing is also available.

What is the size of the panel cabin in square meters?

Panel cabin sizes can go up depending on what you need. We can also create custom configurations to make the most of the space or to work within certain site limitations.

Can you provide installation service?

Yes, we offer professional installation services too. Our team will handle the setup, making sure everything’s good for your installation service.

KARMOD SANDWICH PANEL CABIN TECHNICAL SPECIFICATIONS (ANNEX-A)
TECHNICAL DATA
Earthquake Conditions	1st degree
Metal Materials	ST 37 GALVANIZED METAL PROFILE
Climate Conditions	Turkiye Climate Regions
Snow Load	80 Kg/m²
Insulation	TS 365 NEW GENERATION FLAMMABLE B1 CLASS Polystyrene Foam (EPS)
Wind speed	80 Km/Hour (Fixing to the ground is the responsibility of the customer
Chassis Load Capacity	200 Kg/m²
FLOOR
System	The floor of the cabin is made of specially shaped steel construction and 2040-3050 one-piece box profiles. The ground to be placed must be level.
Floor covering	Fibercement, cemented particle board or equivalent board plate is used as the floor covering of the cabin.
EXTERIOR PANEL
Exterior Panel Cladding	External surface coatings RAL 9002 ELECTROSTATIC PAINTED SHEET.
Inner Panel	Internal surface coatings RAL 9002 ELECTROSTATIC PAINTED SHEET.
Panel Insulation	Polystyrene Foam (EPS) with 30 mm thickness and 16 kg/m³ density is used. The fire class is B1. It does not smell and mold. It provides heat and sound insulation.
ROOF
Roof System	It is manufactured from ABS material with a single wall of 4 mm thickness. The specially prepared 1.5 mm steel profile, reinforced with galvanized chassis carcass, is mounted to the cabin construction with screw connection.
Roof Insulation	In the roof construction, insulation with 40 mm thick and 16 kg/m³ density Polystyrene Foam (EPS) and perfect impermeability are provided with a special form GRP roof.
Inner Surface Coating	PVC Paneling is used as ceiling covering.
Exterior Surface Coating	It is a 0.40 mm electrostatic powder coated galvanized sheet material resistant to the external atmosphere and the ultraviolet rays of the sun. It has anticorrosive, washable, rustproof and rotproof properties. Body painting in different colors is not allowed.
DOORS
Exterior Door	It is a white colored special hinged PVC door. TSE certified locks and special door handles are used. The outer door size is 71.5 x 184.5 and the upper part is 4 mm thick door glass, the outer surface of the under-door mirror is 0.40 mm Ral 9002 painted micro-rolled galvanized sheet and the inner surface is paneled.
WINDOWS
Window	It consists of electrostatic powder coated white aluminium profile frames.
Glass	The windows of the cabin are made of 4 mm thick tempered glass (auto glass). It is produced in a way that does not harm people when the glass is broken.
PAINTS
Metal Parts	2 mm thick steel profile galvanized chassis is used. The construction is not painted.
	Galvanized material outer cover parts are produced in electrostatic painted standard colors upon request.
ELECTRICAL INSTALLATION
Cable	3 x 2.5 TSE certified NYM brand cable was laid on the surface using the electrical wiring duct.
Fuses	16 A TSE certified fuse automat is used.
Lighting Fixture	TSE certified donut or globe lighting fixtures are used.
Sockets and Switches	2000 W 220 Volt resistant TSE certified materials are used in electrical switches and grounded sockets.
SANITARY INSTALLATION (Surface mounted)
Sanitary ware	TSE certified materials are used.
Clean Water Installation	TSE certified PPRC materials are used.
Waste Water Installation	TSE certified PVC material is used.
EXTERNAL CONNECTIONS
It is the customer's responsibility to pour concrete 20 cm more than the cabin dimensions, install the cabin on the ground, and make electricity, clean water and waste water connections.
OPTIONAL ACCESSORIES
Optionally, special requests such as window eaves, counters, tables, shelves, sinks, blinds, interior wall partitions and additional WC are made for a fee.
LIFTING SYSTEM and SHIPMENT
Depending on the conditions of the area to be shipped, it is possible to load with a crane thanks to the eyebolt rings in the inner corners. However, for this, equal steel rope and a minimum of 2 m. Pay attention to the boom distance. In cases where it is not possible to load with a crane, there are feet that allow transportation from the bottom with forklift or pallet truck. The vehicle should approach as far as the cabin will be lowered.
Karmod Cabin Technologies reserves the right to make changes to technical specifications.
