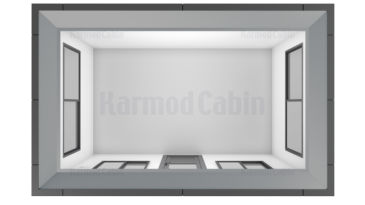

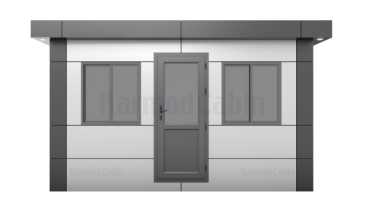

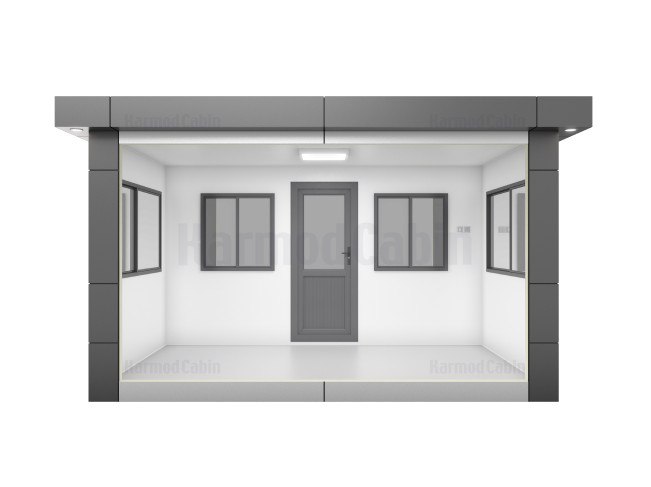

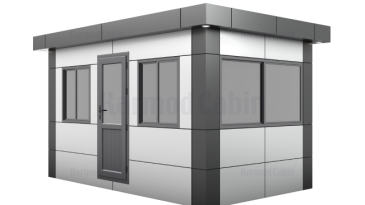

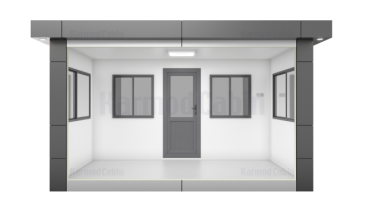

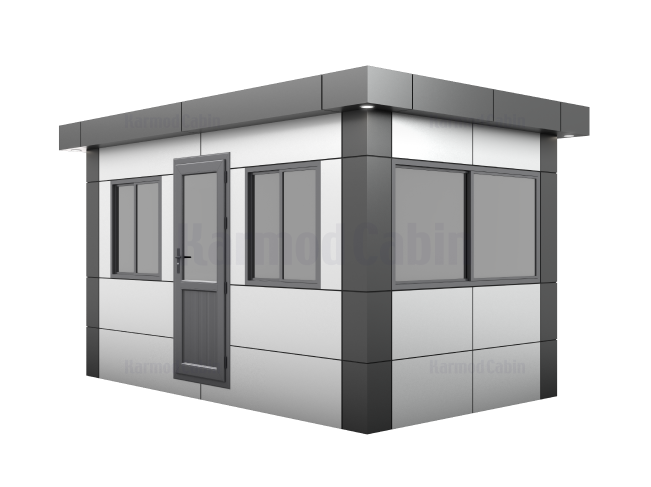

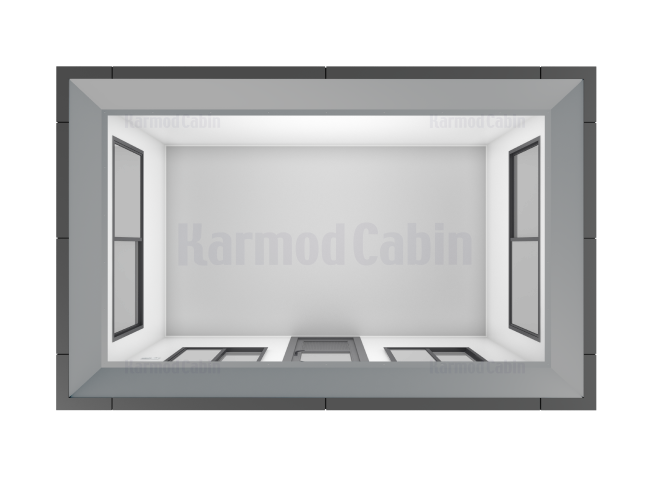

Metro Lux Cabin 240x400

  • Width 400 cm
  • Depth 240 cm
KARMOD METROLUX CABIN TECHNICAL SPECIFICATIONS
Doc.No CÜ-TÖ-01 Issue Date 1.05.2024
Rev.No 02 Rev.Date 1.07.2024
PRODUCTION DIMENSIONS The dimensions of the ordered product are specified in the "technical drawing" attached to the contract.
ALL DIMENSIONS may vary by ± 5 mm tolerance.
TECHNICAL DATA
Seismic Conditions 1st Degree
Climate Conditions 3rd Climate Zone
Snow Load 80 Kg/m²
Rock Wool 50 mm thickness - Density 40 kg/m³
External Wall Heat Transmission Coefficient 0.46 W/m²K
Roof Heat Transmission Coefficient 0.26 W/m²K
Floor Heat Transmission Coefficient 1.24 W/m²K
Floor Load Capacity 200 Kg/m²
Metal Materials ST 37 GALVANIZED METAL PROFILE
Wind Speed 80 Km/h (provided that the product is fixed to the ground)
FLOOR
System The floor is applied over single-piece steel construction box profiles. The ground to be placed on must be level.
Wind Speed Ground Fixation The ground fixing apparatus is optional in the wind. It is provided upon customer request.
Floor Covering 14 mm thick flooring as fibercement, cemented chipboards with 2 mm thick PVC Mineflo.
WALL
System The specially shaped composite panels are mounted by screwing onto the chassis profiles.
External Surface Composite Panel
Internal Surface Composite Panel
Wall Insulation Made of 50 mm thick, 40 kg/m³ Rock Wool with fire class A, providing full thermal insulation with healthy and safe materials.
ROOF
Roof System Trapezoidal roofed cabin: consists of a trapezoidal sheet lamination and insulation material. The insulation consists of 40 mm thick glass wool (14 kg/m³), 0.50 mm thick 27 mm * 200 mm deep Natural Trapezoidal Galvanized Sheet, and composite panel on the ceiling.
Polyurethane-filled sandwich panel: consists of 0.3 mm painted sheet, 40 mm polyurethane filling, and a sealing gasket for insulation.
It is produced with specially shaped construction and single-piece load-bearing profiles, with a 20 cm eave, 25 cm high composite panel cladded parapet. Rainwater is drained through the corner columns.
DOORS
External Door Aluminum framed door with film is used
WINDOWS
Window Aluminum framed window with film is used
Glass The window glass of the cabin is made of 4 mm thick tempered glass (auto glass) designed to avoid harm when broken.
PAINTS
Internal Facade Painted Composite Panel
External Facade Painted Composite Panel
ELECTRICAL INSTALLATION
System Concealed Installation
Cable For sockets, 3x2.5 mm; for lighting, 2x1.5 mm NYM TSE certified cables are used.
Lighting TSE certified circular or globe fixtures are used.
PLUMBING (FOR WC - SHOWER CABINS)
System Surface-mounted using PPRC material.
Toilet Bowl Ceramic, TSE certified products are used.
Shower Tray Made of acrylic material, TSE certified products are used.
Sink Ceramic, TSE certified products are used.
Ventilation Aluminum ventilation grids with dimensions of 30 x 40 cm are used for shower and WC ventilation.
Clean Water Installation TSE certified PPRC material is used.
Wastewater Installation TSE certified PVC material is used.
Accessories TSE certified materials such as mirrors, hooks, metal paper holders, plastic liquid soap dispensers, etc., are used.
EXTERNAL CONNECTIONS
It is the customer’s responsibility to pour 20 cm of concrete beyond the cabin dimensions, install the cabin on the ground, and make electrical, clean water, and wastewater connections.
LIFTING FUNCTION
Can be lifted and lowered with lifting lugs and steel ropes from the four corners
Can be lifted and lowered with the help of a forklift.
Karmod Cabin Technologies reserves the right to make changes to the technical specifications of the product.
  • Width 140 cm
  • Depth 140 cm
  • Width 215 cm
  • Depth 140 cm
  • Width 265 cm
  • Depth 215 cm
  • Width 300 cm
  • Depth 240 cm
  • Width 500 cm
  • Depth 240 cm
  • Width 600 cm
  • Depth 240 cm
  • Width 265 cm
  • Depth 265 cm
Technical Specifications
  • Building Height 140/215/240/265 cm
  • Wall Insulation Made of 50 mm thick, 40 kg/m³ Rock Wool with fire class A
  • External Door PVC frame door is used
  • Roof Heat Transmission Coefficient 0.26 W/m²K
  • Window Aluminum framed window with film is used
  • Metal Materials ST 37 Galvanized metal profile
  • Cable For sockets, 3x2.5 mm; for lighting, 2x1.5 mm NYM TSE certified cables are used.
  • System The floor is applied over single-piece steel construction box profiles.
  • Roof System 40 mm thick glass wool (14 kg/m³), 0.50 mm thick 27 mm * 200 mm deep
  • Glass  The window glass of the cabin is made of 4 mm thick tempered glass
Frequently Asked Questions
What is the average delivery time for a metro lux cabin?

Usually, it takes anywhere from 5 to 15 days to deliver a metro lux cabin. That said, the timing can vary depending on whether it’s already in stock and how far it needs to travel to reach you.

Can the exterior design of a metro Lux cabin be modified?

Yes, definitely. You can tweak the exterior design to match your vision. Whether it’s changing the height, adjusting the width, or incorporating other design elements, it can all be customized to your needs.

Can we easily relocate metro Lux cabins to a different location?

Yes, you can! Metro lux cabins are made to be moved around with ease. Thanks to their modular design, they can be taken apart, transported, and put back together without too much hassle, perfect if you need flexibility.

Can I use metro lux cabins in all seasons?

Absolutely. These cabins are built to be comfortable no matter the season. With the right insulation and heating or cooling setup, they’ll keep you warm in winter and cool in summer, so you’re covered all year round.

How is the shipment process of a metro lux cabin carried out?

It depends on the specific model, but cabins are either shipped as fully assembled units or in parts that are put together on-site. Our logistics team will coordinate everything to make sure it all arrives on time.

How is the wind resistance of the cabins?

Metro lux cabins are made to stand strong against tough weather, including high winds. They’re reinforced with sturdy materials and anchoring systems to keep everything stable and safe.

Are cabin dimensions standard? Can custom sizes be produced?

While we offer standard sizes, we can absolutely create a custom-sized cabin to fit your requirements. You can adjust the height, width, and layout to make it just right for your space and preferences.

What is the size of the metro lux cabin in square meters?

The size varies depending on the model you choose. For example, a smaller cabin might give you around 25 to 37 square meters of space to work with, but the exact size will depend on the design you select.

Can you provide installation service?

Yes, we can. Our professional installation team is available to handle the setup for you. If you prefer to do it yourself, we’ll provide detailed instructions to guide you step-by-step.
