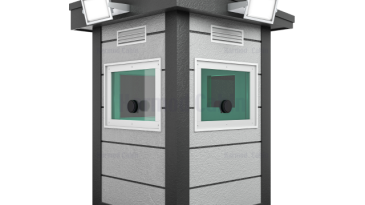

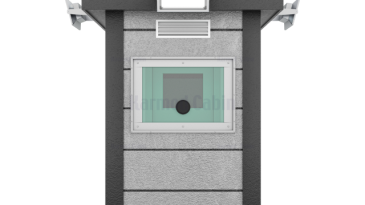

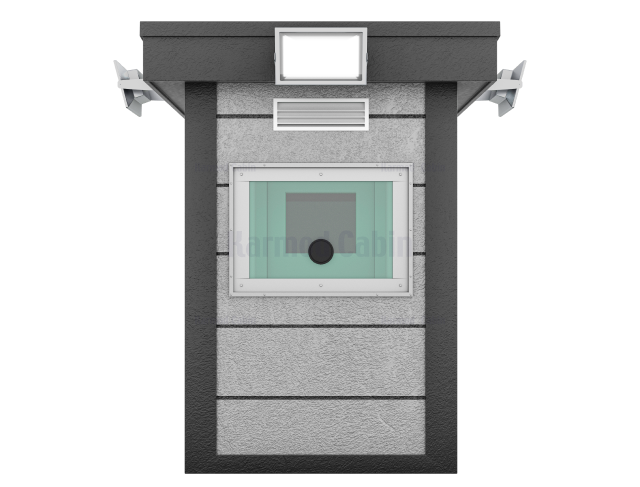

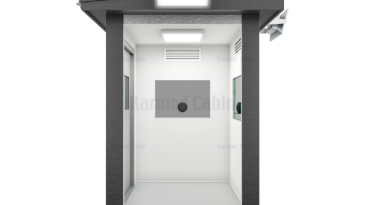

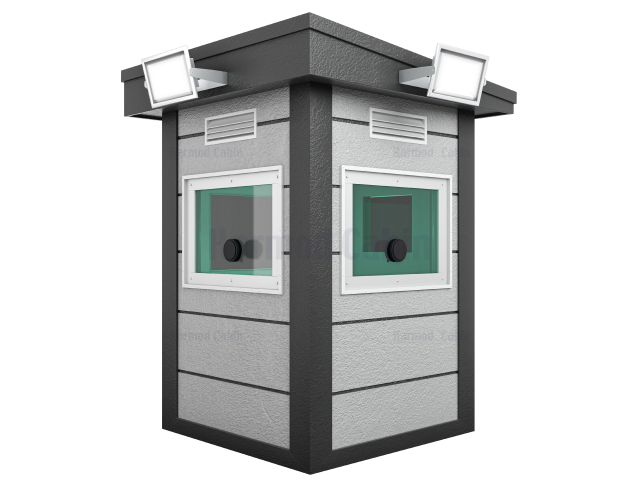

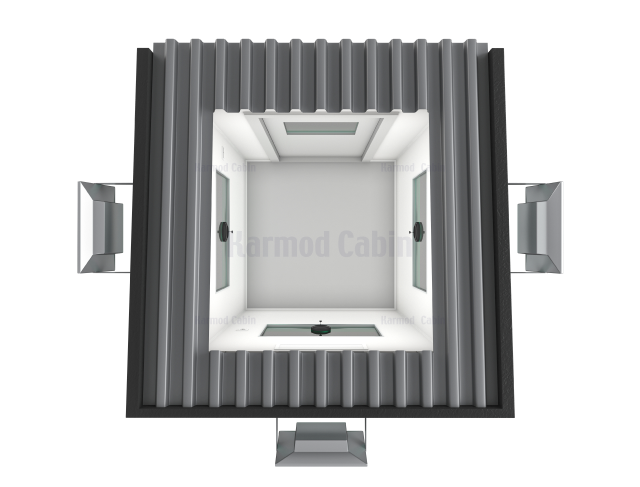

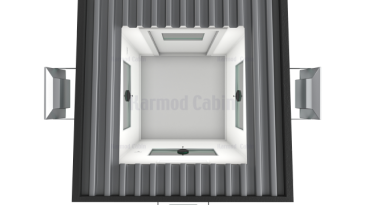

Armored Cabin 150x150

Get offer

Add to cart

Width 150 cm
Depth 150 cm

Technical Information Other Dimensions

KARMOD BULLETPROOF ARMORED CABIN TECHNICAL SPECIFICATIONS
PRODUCTION DIMENSIONS	Manufactured in various dimensions.
Height	2500 mm at its highest point, including parapet.
Metal Materials	ST 37
Betopan	TSE 634-2
Glass Wool	TS 901
Polystyrene Foam	TS 7316
TECHNICAL DATA
Seismic Conditions	1st Degree
Climate Conditions	3rd Climate Zone
Snow Load	200 Kg/m²
Wind Speed	150 Km/h (provided that it is fixed to the ground)
External Wall Heat Transmission Coefficient	K: 0.50 Kcal/m²hc
Roof Heat Transmission Coefficient	K: 0.69 Kcal/m²hc
Floor Heat Transmission Coefficient	K: 0.68 Kcal/m²hc
Chassis Load Capacity	200 Kg/m²
FLOOR
Floor Covering	14 mm thick non-flammable Betopan boards are used as the floor covering, with 2.5 mm thick PVC used as the flooring finish.
EXTERNAL WALL
System	Constructed with reinforced profiles, forming a carcass structure.
Armor	A strong steel construction is applied using profiles, covered with HARDOX steel (abrasion-resistant). The protection level is BR7. The total wall thickness is 100 mm.

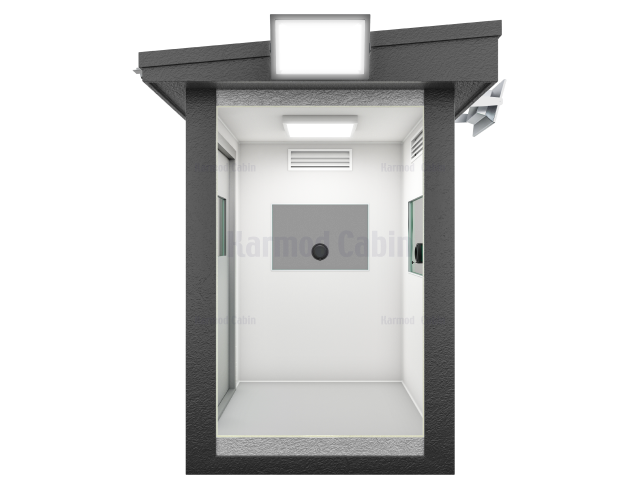

Interior Surface Coating	Over the abrasion-resistant steel, a coat of paint is applied. Water-resistant chipboard or other optional interior cladding materials can be used for aesthetic purposes.
Wall Insulation	Made of 50 mm thick, 40 kg/m³ rock wool (fire class A1) providing full thermal insulation with healthy and safe materials.
Exterior Surface Coating	The exterior surface is covered with 10 mm thick Stonecoat or wood-patterned Betopan boards, based on preference.
ROOF
Roof System	Manufactured using specially shaped construction and single-piece load-bearing profiles. It is sloped to one side to prevent explosive materials from accumulating. Galvanized trapezoidal roof.
Roof Insulation	80 mm thick glass wool (14 kg/m³) is used for insulation.
Interior Surface Coating	PVC lamination is used for the interior ceiling. (Optional 8 mm Betopan can be used) (For WC-equipped metropolitan cabins, PVC lamination is used for the interior ceiling.)
Exterior Surface Coating	The exterior surface is covered with Stonecoat patterned chipboards.
DOORS
External Door	Made from BR7-class HARDOX abrasion-resistant steel. Dimensions: 800x1950 mm. The door includes a 450x450 mm BR7-class viewing window.
WINDOWS	Bulletproof EN 1063 BR7 NS class. The glass has a bulletproof certification from the internationally accredited laboratory TÜV Rheinland. It is scratch-resistant polycarbonate-based. The glass thickness is 85 mm and can be produced in custom sizes.
PAINTS
Exterior Facade	The exterior surfaces are painted with silicone-based exterior paint in the desired color.
Door Frames	Primed with 1 coat of rapid primer paint.
Metal Components	1 coat of rapid primer paint is applied.
ELECTRICAL INSTALLATION (Concealed)
System	The cabin includes one socket and one telephone socket. Additionally, three corners of the eaves are equipped with floodlights for lighting.
INSTALLATION	Electrical power: 2000 W, 220 Volts. For sockets, 3x2.5 mm; for lighting, 2x1.5 mm TSE certified NYM cables are used. All installation materials are TSE certified.
OTHER	The cabin is equipped with ventilation and exterior lighting. An emergency siren can be installed upon request to cause panic in the attacker.
OTHER ACCESSORIES
SIREN	One emergency siren is installed to cause panic in the attacker during emergencies.
AIR CONDITIONER	9000 BTU air conditioner
FIRE EXTINGUISHER	One fire extinguisher is included inside the cabin.
LIFTING FUNCTION
The cabin can be lifted and lowered with lifting lugs and steel ropes from the four corners. The weight of the cabin will vary depending on its size.
Karmod Cabin Technologies reserves the right to make changes to the technical specifications of the product.

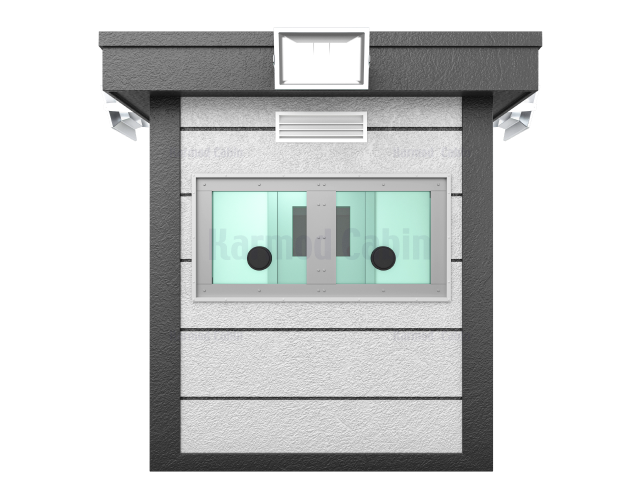

Armored Cabin 150x200

Width 200 cm
Depth 150 cm

Detail Add to Cart

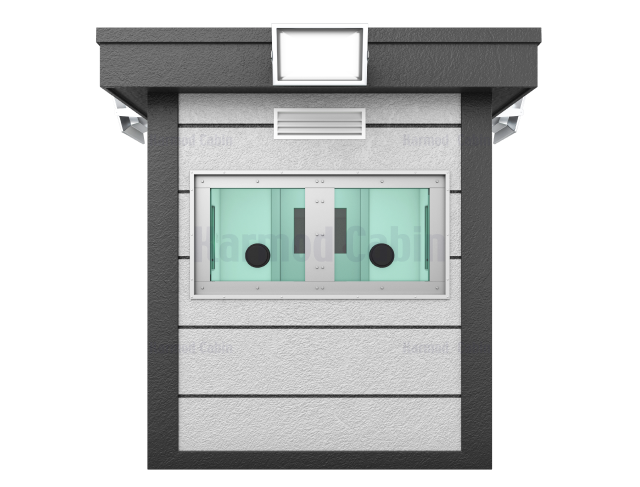

Armored Cabin 200x200

Width 200 cm
Depth 200 cm

Detail Add to Cart

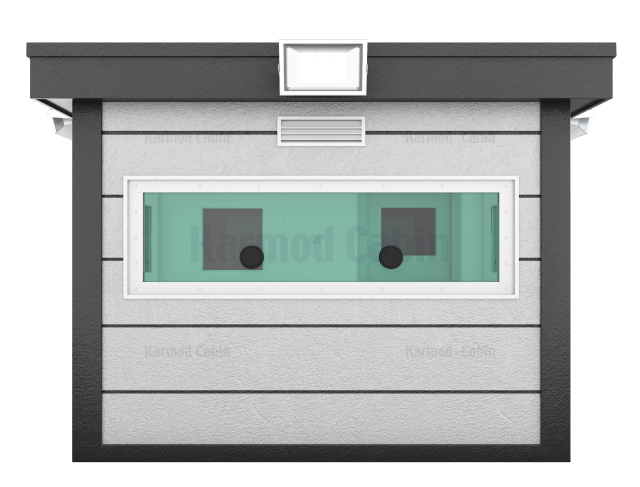

Armored Cabin 200x300

Width 300 cm
Depth 200 cm

Detail Add to Cart

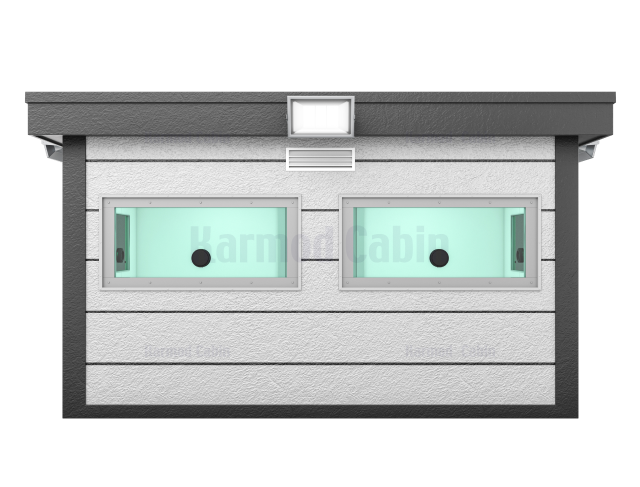

Armored Cabin 200x400

Width 400 cm
Depth 200 cm

Detail Add to Cart

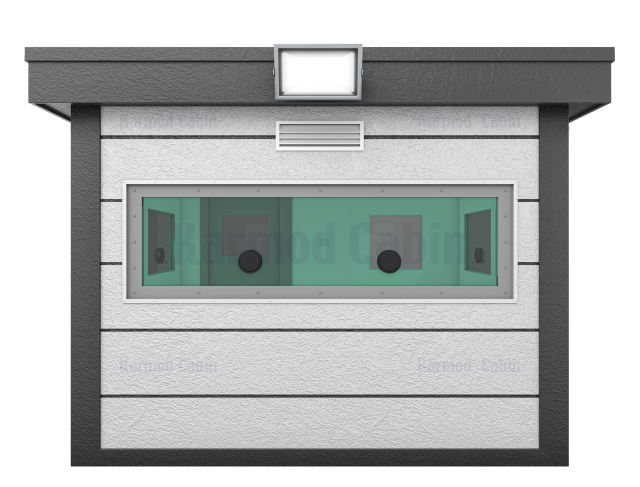

Armored Cabin 300x300

Width 300 cm
Depth 300 cm

Detail Add to Cart

Armored Cabin 300x400

Width 400 cm
Depth 300 cm

Detail Add to Cart

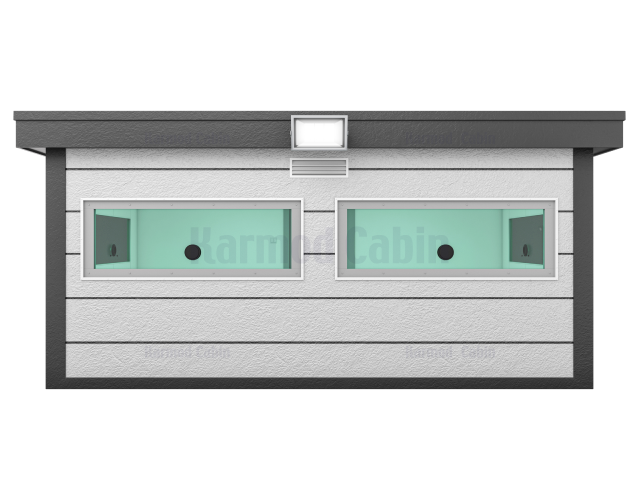

Armored Cabin 300x500

Width 500 cm
Depth 300 cm

Detail Add to Cart

Technical Specifications

Building Height 150/200/300 cm
Wall Insulation Made of 50 mm thick, 40 kg/m³ rock wool (fire class A1)
External Door Made from BR7-class HARDOX abrasion-resistant steel.
Roof Heat Transmission Coefficient K: 0.69 Kcal/m²hc
Window Bulletproof EN 1063 BR7 NS class.

Metal Materials ST 37.
Installlation Electrical power: 2000 W, 220 Volts. For sockets, 3x2.5 mm; for lighting, 2x1.5 mm TSE certified
System Constructed with reinforced profiles, forming a carcass structure.
Roof System Manufactured using specially shaped construction and single-piece load-bearing profiles
Glass Wool TS 901

Frequently Asked Questions

What is the average delivery time for an armored cabin?

On average, it takes about 6 to 8 weeks to deliver an armored cabin. The timing can change a bit depending on your needs and any custom features you want. We always try to keep things moving quickly while making sure quality stays high.

Can the exterior design of an armored cabin be modified?

Yes, it can! You can pick different colors, materials, and add things like extra windows or doors. Everything can be tailored to match what you’re looking for.

Can we easily relocate armored cabins to a different location?

Yes, you can move armored cabins pretty easily. They’re made to be portable. Depending on the size and distance, you might need special equipment to move them, but their modular design makes relocation manageable.

Can I use armored cabins in all seasons?

Yes, armored cabins work in any season. They’re built to handle all types of weather. Good insulation means the inside stays comfortable.

How is the shipment process of an armored cabin carried out?

Shipping an armored cabin is carefully planned to make sure it arrives safely. Heavy-duty vehicles are used, and the cabin is packed securely to prevent damage during the trip. We take care of all the logistics, so you don’t have to worry about a thing.

How is the wind resistance of the cabins?

These cabins are built to stand up to strong winds. They’re tested to make sure they stay stable and hold up well, even in tough weather conditions.

What is the size of the armored cabin in square meters?

The size depends on the model and any changes you need. Standard sizes usually range from 10 to 20 square meters. But we can make custom sizes if you have something specific in mind.

Can you provide installation service?

Yes, we offer installation services. Our team will take care of setting up the cabin and making sure it’s secure at your location. We’ll make sure it’s done right, so everything works as it should.
